Deformed steel pipe DIN2391

Category:

PRODUCT

Steel Tube

Brief description:

TuoDa has kind of resource of information and technology of produce in steel market in China, we build complete and strict quality control system to make sure all the products are complete reach the requirements of customers. The advantage products here as well as S355j2h S390 S420ML SAE4130+QT SAE4140+QT SAE4145+QT SAE4330+QT and so on.

Key words:

steel

tube

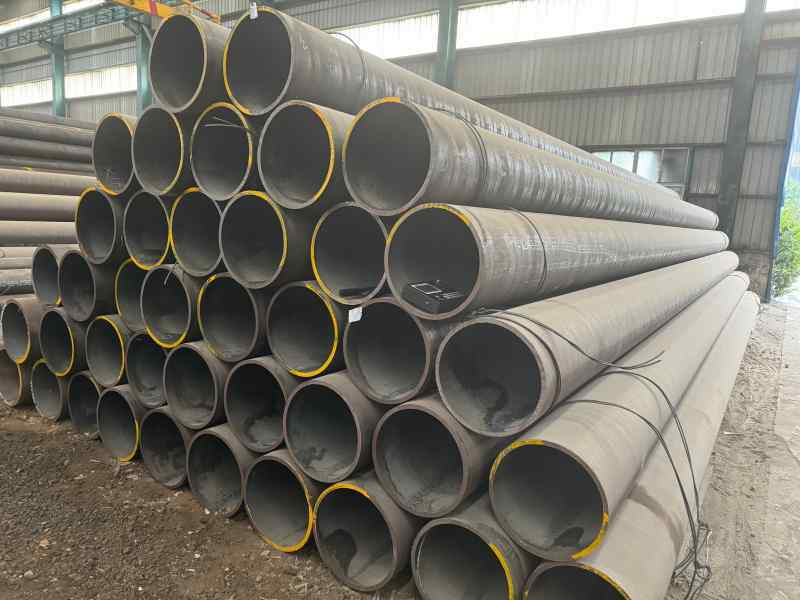

Deformed steel pipe DIN2391

Product Description

DIN2391-1(ST35, ST45, ST52).DIN 2391 applies to seamless precision steel tubes and in compliance with ISO/DIN 3304, those tube dimensions have been selected from the range of manufacture dimensions which are mainly used as design elements.

If tubes having the tolerances and are produced according to the technical conditions of deivery as specified in this Standard are to e used as pipelines, then the dimensions specified in DIN 2448 may from time to time be used. These tubes must be ordered according to quality grade C.

Grade and Chemical Composition(%)

Grade	Chemical Composition(%):
Grade	C max	Si max	Mn	P max	S max
St 35	0.17	0.35	≥0.40	0.025	0.025
St 45	0.21	0.35	≥0.40	0.025	0.025
St 52	0.22	0.55	≤1.60	0.025	0.025

Steel grade		Chemical Composition(%):
Steel name	Steel number	C max	Si max	Mn	P max	S max	Al min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-

Mechanical Properties(Mpa)

Steel Grade		Minimum values for the delivery condition
Steel Name	Steel Number	BK		BKW		BKS			GBK		NBK
		Rm	A %	Rm	A %	Rm	ReH	A %	Rm	A %	Rm	ReH	A %
		Mpa	A %	Mpa	A %	Mpa	Mpa	A %	Mpa	A %	Mpa	Mpa	A %
St 30 Si	1.0211	430	8	380	12	380	280	16	280	30	290 to 420	215	30
St 30 Al	1.0212	430	8	380	12	380	280	16	280	30	290 to 420	215	30
St 35	1.0308	480	6	420	10	420	315	14	315	25	340 to 470	235	25
St 45	1.0408	580	5	520	8	520	375	12	390	21	440 to 570	255	21
St 52	1.0580	640	4	580	7	580	420	10	490	22	490 to 630	355	22

DIN 2391 St30Si, St30Al, St35, St45, St5 seamless precision tubes applications

– Used in Hydraulic & pneumatic cylinder, Mechanical and Automotive engineering

Chemical Composition

Standard	Grade		Chemical Components (%)
Standard	Symbol	Material No.	C	Si	Mn	P	S
DIN2391	St 30 Si	1.0211	≤0.10	≤0.10	≤0.55	≤0.025	≤0.025
	St 30 Al	1.0212	≤0.10	≤0.05	≤0.55	≤0.025	≤0.025
	St 35	1.0308	≤0.17	≤0.35	≥0.40	≤0.025	≤0.025
	St 5	1.0408	≤0.21	≤0.35	≥0.40	≤0.025	≤0.025
	St 52	1.058	≤0.22	≤0.55	≤1.60	≤0.025	≤0.025

Delivery Conditions

The tubes shall be manufactured from cold drawn or cold rolled processes. The tubes shall be supplied in one of the delivery conditions as follows:

Designation	Symbol	Description
Cold finished (hard)	BK	Tubes do not undergo heat treatment following the final cold forming and thus, have a rather high resistance to deformation.
Cold finished (soft)	BKW	The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding).
Cold finished and stress-relieved	BKS	Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.
Annealed	GBK	The last cold forming process is followed by annealing in a controlled atmosphere.
Normalized	NBK	The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.

Delivery Condition Symbol in accordance with EN10305 and DIN2391.

Symbol in accordance with EN 10305	Symbol in accordance with DIN2391
+C	BK
+LC	BKW
+SR	BKS
+A	GBK
+N	NBK

Mechanical Properties.

Mechanical properties at room temperature
Steel Grade		Minimum values for the delivery condition
Steel Name	Steel Number	BK		BKW		BKS			GBK		NBK
		Rm	A %	Rm	A %	Rm	ReH	A %	Rm	A %	Rm	ReH	A %
		Mpa	A %	Mpa	A %	Mpa	Mpa	A %	Mpa	A %	Mpa	Mpa	A %
St 30 Si	1.0211	430	8	380	12	380	280	16	280	30	290 to 420	215	30
St 30 Al	1.0212	430	8	380	12	380	280	16	280	30	290 to 420	215	30
St 35	1.0308	480	6	420	10	420	315	14	315	25	340 to 470	235	25
St 45	1.0408	580	5	520	8	520	375	12	390	21	440 to 570	255	21
St 52	1.0580	640	4	580	7	580	420	10	490	22	490 to 630	355	22

Inspection and test list for the DIN 2391 Standard.

Inspection or test types	Test frequency
Inspection or test types	Internal test	Acceptance test
Chemical analysis	M	M
Tensile testing	M	One per tested batch
Flattening test or extension test	M	Two per tested batch
Dimension verification	M	M
Visual inspection	M	M
NDT in order to identify leaks	Individual	Individual
